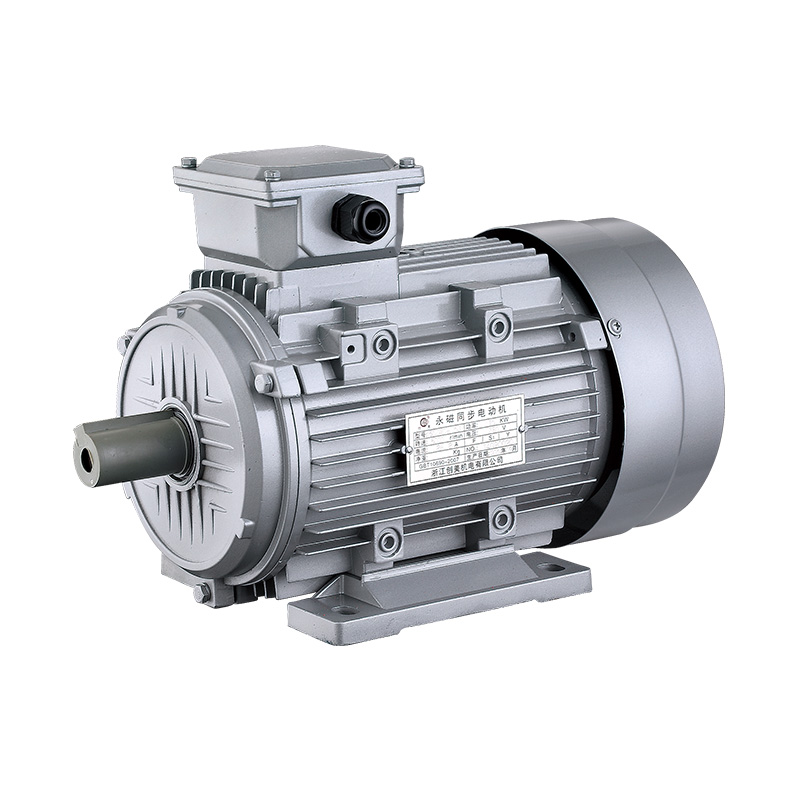

Quick Response Permanent Magnet Synchronous Motor

The Quick Response Permanent Magnet Synchronous Motor (QR-PMSM) is designed to meet the needs of applications that require rapid and precise control.


Rapid Response Capability: The QR-PMSM is engineered to achieve quick acceleration and deceleration. It can swiftly respond to changes in load and speed commands, which is essential in dynamic applications such as high-speed automation lines and material handling systems. This rapid response ensures that the motor can keep up with the demands of fast-paced industrial processes.

High Efficiency: Leveraging the benefits of permanent magnet technology, the QR-PMSM operates with high efficiency across a wide range of speeds and loads. The permanent magnets in the rotor enhance energy conversion, reducing power losses and thus significant energy savings. This not only lowers operating costs but also contributes to a more sustainable operation.

Compact Design: Despite its powerful performance, the QR-PMSM features a compact and lightweight design. This makes it easy to integrate into space-constrained systems without compromising on power output. Its small footprint is particularly advantageous in applications such as robotics, where size and weight are critical factors.

High Torque Density: The QR-PMSM delivers high torque relative to its size, enabling it to provide strong driving force even in a compact form. This high torque density is beneficial in applications that require a combination of high power and precision, such as in precision manufacturing and industrial automation.

Reliability and Durability: The design of the QR-PMSM emphasizes reliability. The use of permanent magnets eliminates the need for brushes and commutators, reducing wear and tear and less maintenance requirements. This results in a longer service life and lower overall maintenance costs, making it a cost-effective choice for long-term use.

Wide Speed Range: The QR-PMSM can operate efficiently over a wide speed range, providing consistent performance whether running at low or high speeds. This versatility makes it suitable for a variety of applications that require different speed settings, ensuring that the motor can adapt to changing process requirements.

The Quick Response Permanent Magnet Synchronous Motor is a powerful and efficient solution that offers rapid response, high efficiency, and a compact design. It is a good choice for applications that demand quick and precise control, such as in automation, robotics, and high-speed manufacturing processes.

View Gallery
Prev：High Efficiency Permanent Magnet Synchronous Motor Next：Precise Control Permanent Magnet Synchronous Motor
Product Parameters
model Rated power (Kw) Voltage (V) Rated current (A) Rated torque (N.m) Rated efficiency (%) Rated/maximum torque Rated speed (RPM) Stabilization speed (%) Speed ​​(r/min) Weight (Kg)
YT63-0.55-5000 0.55 220 2.18 1.05 79.8 2 5000 0.2 0-6000 5.2
YT63-0.75-5000 0.75 220 2.91 1.43 81.5 2 5000 0.2 0-6000 6
YT63-1.1-5000 1.1 220 4.2 2.1 83 2 5000 0.2 0-6000 6.8
YT71-1.1-5000 1.1 220 4.2 2.1 83 2 5000 0.2 0-6000 8.2
YT71-1.5-5000 1.5 220 5.62 2.86 84.5 2 5000 0.2 0-6000 8.8
YT71-2.2-5000 2.2 380 4.4 4.2 85.9 2 5000 0.2 0-6000 9.3
YT71-3-5000 3 380 5.86 5.7 87.1 2 5000 0.2 0-6000 10.2
YT80-3-5000 3 380 6 5.7 86.2 2 5000 0.2 0-6000 10.2
YT80-4-5000 4 380 7.8 7.6 88 2 5000 0.2 0-6000 11.8
YT80-5.5-5000 5.5 380 10.5 10.5 88.9 2 5000 0.2 0-6000 13.1
YT90-4-5000 4 380 7.8 7.64 89.8 2 5000 0.2 0-6000 18.6
YT90-5.5-5000 5.5 380 10.5 10.5 89 2 5000 0.2 0-6000 21.3
YT90-7.5-5000 7.5 380 14.2 14.3 89 2 5000 0.2 0-6000 22.8
YT90-11-5000 11 380 20.5 21 90.1 2 5000 0.2 0-6000 23.5
YT100-7.5-5000 7.5 380 14.2 14.3 89.5 2 5000 0.2 0-6000 29
YT100-11-5000 11 380 20.5 35 90.1 2 5000 0.2 0-6000 30.9
YT100-15-5000 15 380 27.8 28.7 90.6 2 5000 0.2 0-6000 32.5
YT112-11-5000 11 380 20.5 21 90.6 2 5000 0.2 0-6000 39
YT112-15-5000 15 380 27.8 28.7 90.8 2 5000 0.2 0-6000 36
YT112-18.5-5000 18.5 380 34 35.3 91.5 2 5000 0.2 0-6000 38
YT112-22-5000 22 380 40.1 42 92.2 2 5000 0.2 0-6000 40
YT132-22-5000 22 380 40.1 42 92.5 2 5000 0.2 0-6000 46
YT132-30-5000 30 380 54.2 57.3 93.1 2 5000 0.2 0-6000 48
YT132-37-5000 37 380 66.5 70.7 93.6 2 5000 0.2 0-6000 49
YT132-45-5000 45 380 80.6 86 94 2 5000 0.2 0-6000 50.3
YT160-37-5000 37 380 66.5 70.7 93.6 2 5000 0.2 0-6000 96
YT160-45-5000 45 380 80.6 85.9 94.5 2 5000 0.2 0-6000 104
YT160-55-5000 55 380 98.1 105 94.4 2 5000 0.2 0-6000 113
YT160-63-5000 63 380 112.1 120 94.6 2 5000 0.2 0-6000 128
YT180-55-5000 55 380 98.1 86 94.4 2 5000 0.2 0-6000 145
YT180-63-5000 63 380 112.1 120 94.6 2 5000 0.2 0-6000 156
YT180-75-5000 75 380 133.2 143 94.8 2 5000 0.2 0-6000 172
YT180-90-5000 90 380 159.2 172 95.2 2 5000 0.2 0-6000 183
YT200-75-5000 75 380 133.2 143 94.8 2 5000 0.2 0-6000 203
YT200-90-5000 90 380 159.2 172 95.2 2 5000 0.2 0-6000 212
YT200-110-5000 110 380 194.3 210 95.3 2 5000 0.2 0-6000 220
YT200-132-5000 132 380 232.7 252 95.5 2 5000 0.2 0-6000 235
