Home / Product / Mobile Irrigation and Drainage Flood Control Pump / High Flow Portable Hydraulic Axial Flow Pump

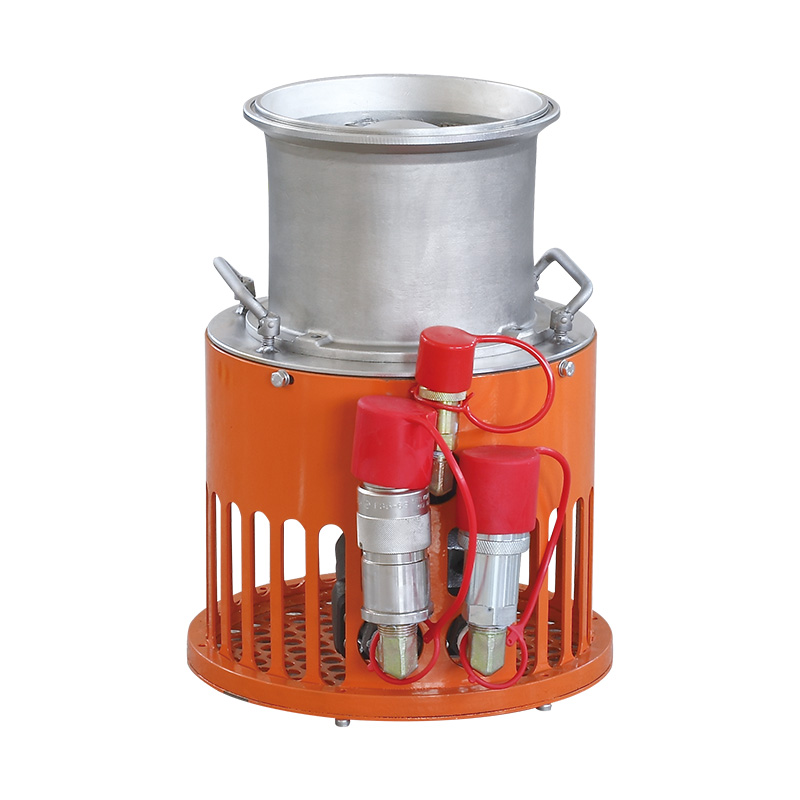

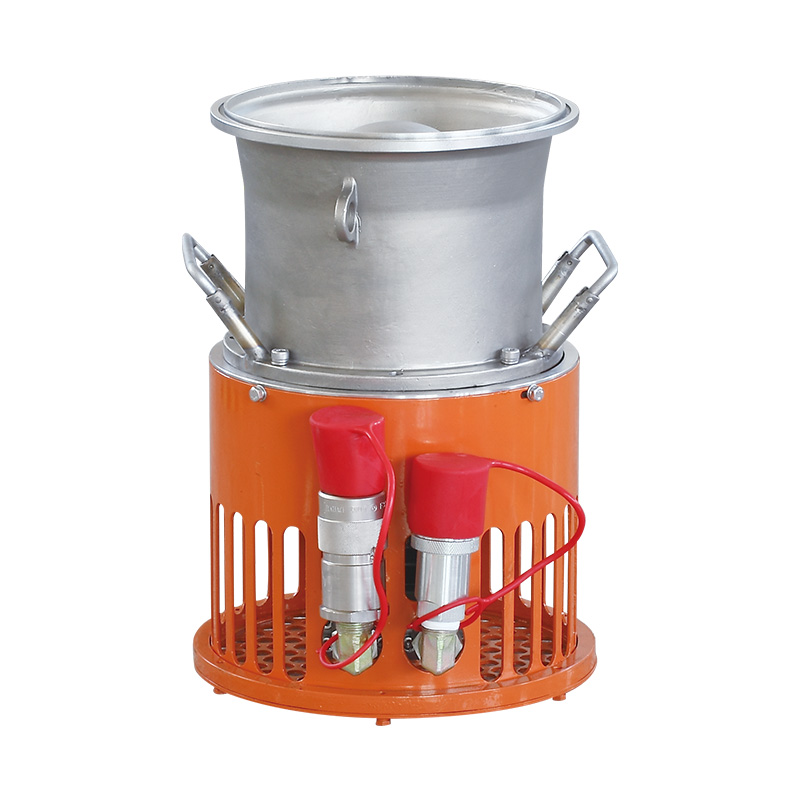

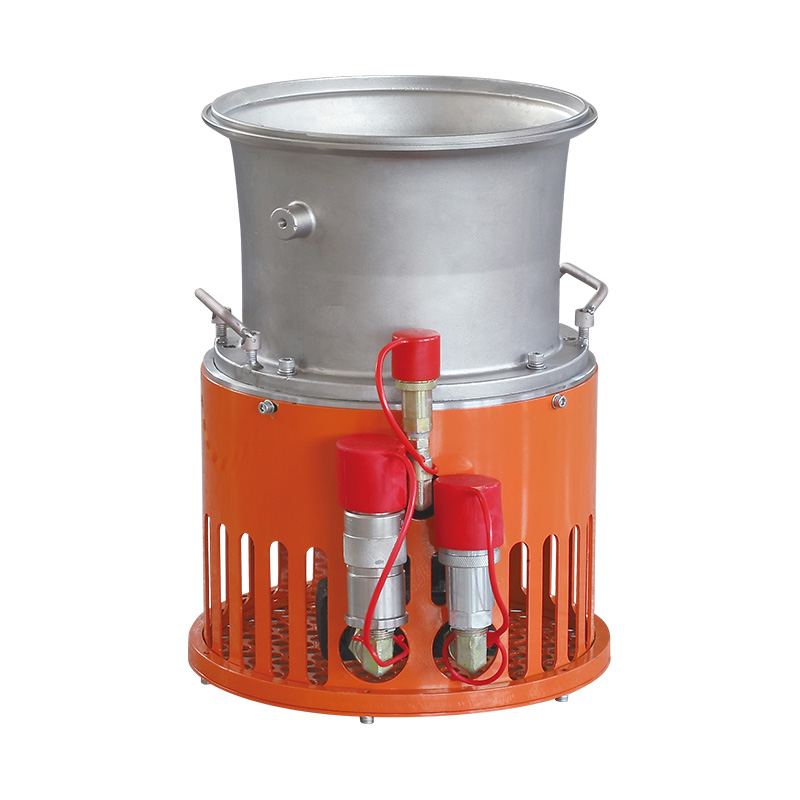

  • High Flow Portable Hydraulic Axial Flow Pump
  • High Flow Portable Hydraulic Axial Flow Pump
  • High Flow Portable Hydraulic Axial Flow Pump
  • High Flow Portable Hydraulic Axial Flow Pump
  • High Flow Portable Hydraulic Axial Flow Pump
  • High Flow Portable Hydraulic Axial Flow Pump
Mobile Irrigation and Drainage Flood Control Pump

High Flow Portable Hydraulic Axial Flow Pump

High Flow Portable Hydraulic Axial Flow Pump, using the hydraulic power source on the vehicle, is widely used in flood prevention, drought resistance, drainage, urban pipe network maintenance, and more. This pump's design leverages the power of hydraulics to deliver high flow rates with efficiency and reliability, making it an indispensable tool in various water management scenarios.


1. Hydraulic Power Efficiency
The High Flow Portable Hydraulic Axial Flow Pump is driven by a hydraulic power source, which allows for a compact and lightweight design without compromising on power. This efficiency translates into lower fuel consumption and reduced emissions, making it an environmentally friendly choice for water management tasks.

2. High Flow Rates
One of a features of this pump is its ability to handle high flow rates, which is crucial during flood events or when rapid water removal is necessary. This capability ensures that the pump can keep up with the demanding situations, providing a fast response to prevent water damage.

3. Portability and Mobility
Designed with portability in mind, the High Flow Portable Hydraulic Axial Flow Pump can be easily transported to the site of need. Its compact size and weight make it suitable for use with a variety of vehicles, including trucks and trailers, allowing for quick deployment wherever it's needed.

4. Versatility in Applications
The versatility of the High Flow Portable Hydraulic Axial Flow Pump is good. It is not only limited to flood prevention but also extends to drought resistance, where it can be used to pump water to areas in need. Additionally, it plays a crucial role in urban pipe network maintenance, helping to clear blockages and maintain the flow of water within the city's infrastructure.

5. Easy Operation and Maintenance
The pump is designed for user-friendliness, with straightforward operation and maintenance procedures. This simplicity reduces the need for extensive training, allowing operators to focus on the task at hand rather than the complexities of the equipment.

6. Durable Construction
Built with high-quality materials, the High Flow Portable Hydraulic Axial Flow Pump is designed to withstand the rigors of continuous use in harsh environments. Its durability ensures a long service life, reducing the need for frequent replacements and less costs over time.

7. Energy-Efficient Design
The axial flow design of the pump contributes to its energy efficiency, requiring less power to move large volumes of water. This not only saves on operational costs but also aligns with the growing demand for energy-efficient solutions in water management.

8. Low Noise Levels
In comparison to traditional pumps, the High Flow Portable Hydraulic Axial Flow Pump operates at lower noise levels, reducing noise pollution during operation. This is particularly beneficial in urban settings where noise regulations are strict and community disturbance is a concern.

9. Rapid Deployment and Setup
The High Flow Portable Hydraulic Axial Flow Pump's quick setup and deployment capabilities are crucial in emergency situations. The unit can be ready to operate in a matter of minutes, providing immediate relief during flood events or other water emergencies.

The High Flow Portable Hydraulic Axial Flow Pump is more than just a tool; it's a comprehensive solution for water management that offers efficiency, reliability, and adaptability, making it an essential asset for any flood prevention, drought resistance, or drainage operation.

Product Parameters
model flow( m³/h ) Head ( m ) Speed ​​( r/min ) Hydraulic power station ( HP) Hydraulic working pressure ( Mpa) Hydraulic flow rate ( lpm) Torque (N.m) Exit diameter ( Inch) Net pump weight (kg) Dimensions ( mm)
200YZQ300-10-15 300 10 3500 15 12 56/16 30 8 25 300×340x400
200YZQ400-8-22 400 8 3500 22 17 56/16 44 8 25 300x340x400
200YZQ400-12-30 400 12 3300 30 18 76/23 64 8 30 300×340x400
200YZQ400-15-37 400 15 3500 37 17 98/28 75 8 31 300×340x400
200YZQ500-7-22 500 7 3000 22 15 69/23 52 8 30 300×340x400
200YZQ500-10-30 500 10 3200 30 18 74/23 66 8 30 300×340x400
200YZQ500-13-37 500 13 3400 37 17 96/28 77 8 30 300x340x400
200YZQ500-15-45 500 15 3400 45 21 96/28 93 8 31 300×340x400
200YZQ600-8-30 600 8 3300 30 18 76/23 64 8 30 300×340x400
200YZQ600-10-37 600 10 3500 37 21 81/23 75 8 31 300x×340x400
250YZQ800-6-37 800 6 3300 37 18 93/28 79 10 32 300x×340x420
250YZQ800-10-50 800 10 3300 50 21 106/32 106 10 32 300×340×420
250YZQ800-15-75 800 15 3400 75 22 153/45 155 10 37 300×340x420
300YZQ1000-8-50 1000 8 2500 50 20 113/45 140 12 41 350x400x465
300YZQ1000-10-60 1000 10 2650 60 22 120/45 159 12 42 350x400x465
300YZQ800-15-75 800 15 2650 75 23 149/56 200 12 47 350x400x465
300YZQ1500-10-90 1500 10 2500 90 25 158/63 240 12 65 390×410×520
