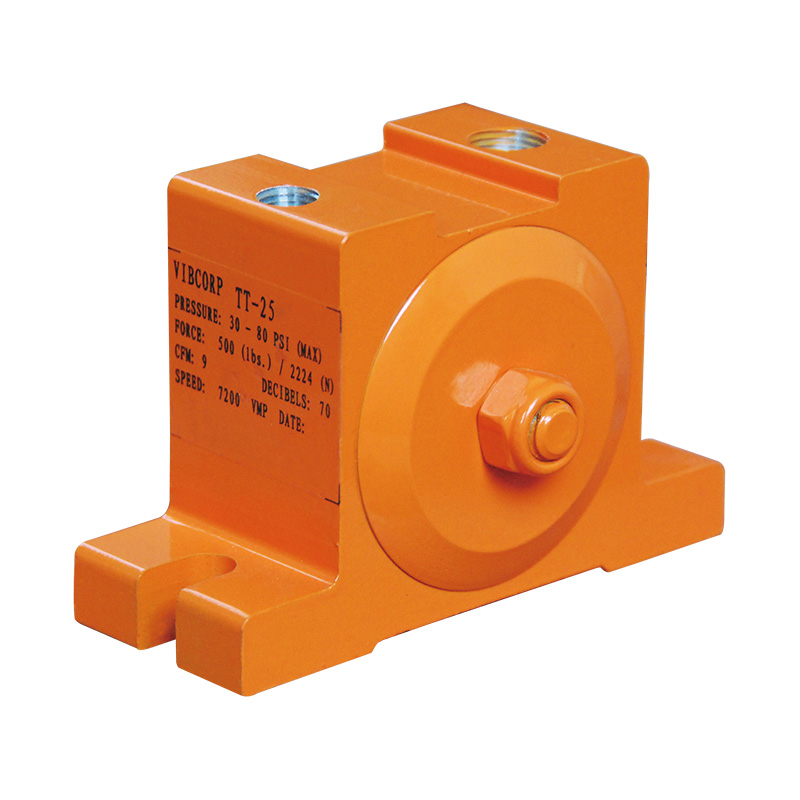

Silent Pneumatic Turbine Concrete Vibrator

In the construction industry, where efficiency and environmental impact are increasingly important, the Silent Pneumatic Turbine Concrete Vibrator stands out as a outsanding tool. Designed to deliver powerful compaction while significantly reducing noise levels, this vibrator offers a unique blend of performance and sustainability.


The Silent Pneumatic Turbine Concrete Vibrator is engineered to provide robust and efficient compaction of concrete. Utilizing advanced pneumatic turbine technology, it generates high-frequency vibrations that ensure thorough and uniform compaction. This technology expels air bubbles and voids from the concrete mix, resulting in a denser and stronger final product. The high efficiency of the turbine ensures that compaction is achieved quickly, speeding up construction timelines and enhancing overall productivity.

One of the significant features of this vibrator is its noise reduction capabilities. Traditional concrete vibrators often produce high levels of noise, contributing to noise pollution and potentially causing hearing damage to workers. The Silent Pneumatic Turbine Concrete Vibrator addresses this issue by operating at significantly lower noise levels. This not only creates a more pleasant and safer working environment for construction workers but also less the impact on surrounding communities, making it ideal for urban construction sites where noise control is crucial.

The Silent Pneumatic Turbine Concrete Vibrator is a change in the construction industry, offering powerful compaction, noise reduction, durability, user-friendliness, energy efficiency, and versatility. Its advanced pneumatic turbine technology ensures high-performance compaction while significantly reducing noise levels, creating a safer and more sustainable construction environment. By choosing this vibrator, contractors can enhance the quality of their concrete work, improve worker safety, and contribute to a more sustainable construction process.

Product Parameters
model V.PM Centrifugal force Gas consumption Noise rate
2Bar  4Bar  6Bar 2Bar=29PSI 4Bar=58PSI 6Bar=87PSI 2Bar=29PSI4 Bar=58PSI 6Bar=87PSI
29PSI 58PSI 87PSI N LBS N LBS N LBS Ltr CF Ltr CF Ltr CF dB(A)
TT-10 13500 15500 17500 390 88 660 149 820 185 67 2.4 115 4.0 165 5.8 69-80
TT-16 9000 9300 12000 550 124 1170 263 1550 349 89 3.1 157 5.5 236 8.3 74-80
TT-25 5000 7500 8000 700 158 1400 315 2050 461 150 5.3 260 9.2 385 13.6 67-76
TT-36 N/A 3900 5900 N/A N/A 2020 455 2690 605 N/A N/A 300 10.6 430 15.2 70-78

model A B C D E F G H weight
mm inch mm inch mm inch mm inch mm inch mm inch BSP BSP kg Lbs
TT-10 50 1.97 33 1.31 86 3.38 68 2.68 12 0.47 8 0.31 1/8" 1/8" 0.26 0.56
TT-16 65 2.56 42 1.65 113 4.45 90 3.54 16 0.63 10 0.39 1/8" 1/4" 0.59 1.25
TT-25 85 3.35 50 1.97 128 5.04 103 4.09 16 0.63 11 0.43 1/8" 3/8" 1.12 2.46
TT-36 100 3.94 73 2.84 160 6.3 130 5.12 20 0.79 12 0.47 1/8" 3/8" 2.27 5.00
