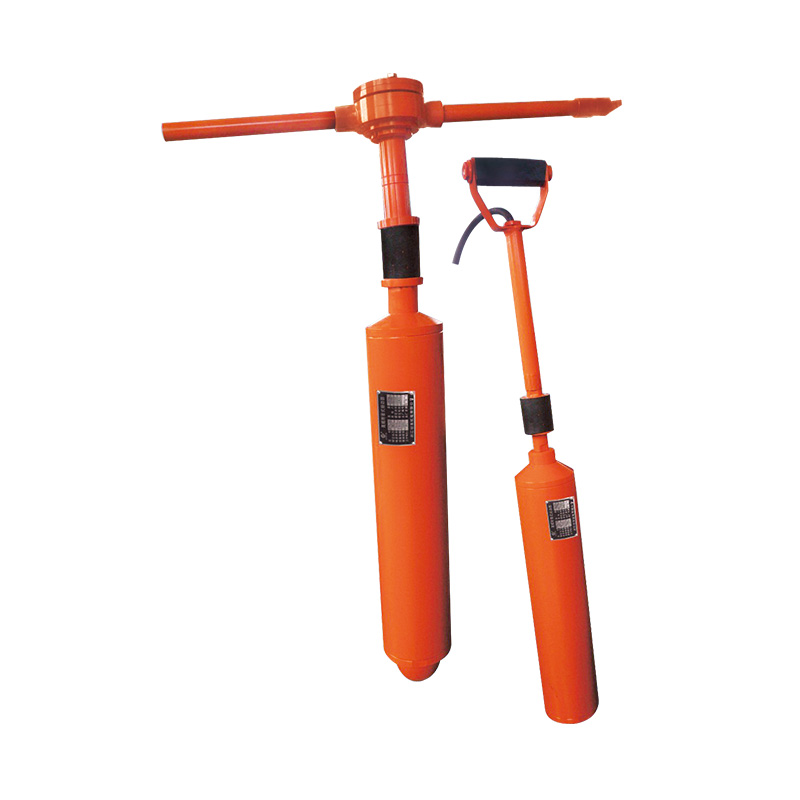

Straight High Frequency Concrete Vibrator Shaft

In the construction industry, the quality of concrete compaction is crucial for the structural integrity and longevity of any project. The Straight High Frequency Concrete Vibrator Shaft is designed to meet these demands with precision and efficiency, offering a reliable solution for achieving good concrete compaction.


The Straight High Frequency Concrete Vibrator Shaft is engineered to deliver high-frequency vibrations, ensuring that concrete is compacted uniformly and thoroughly. This high-frequency technology allows for the rapid expulsion of air bubbles and voids, resulting in a denser and stronger concrete structure. The consistent vibration frequency ensures that every part of the concrete mix is compacted to the same high standard, reducing the risk of structural weaknesses.

The straight design of the vibrator shaft allows for easy and even penetration into the concrete mix. This design ensures that the vibrator can reach all areas of the formwork, providing comprehensive compaction without leaving any spots uncompacted. The smooth surface of the shaft also less friction, allowing for smoother operation and reduced wear and tear.

The Straight High Frequency Concrete Vibrator Shaft is a valuable tool for any construction project, offering outstanding compaction, ease of use, durability, and energy efficiency. Its high-frequency technology ensures that concrete is compacted uniformly, resulting in stronger and more durable structures. With its user-friendly design and compatibility with various construction equipment, this vibrator shaft is an essential addition to any construction site, helping to ensure high-quality results and efficient operations.

Product Parameters
model ZDN80 ZDN100 ZDN130
power supply Three phases Three phases Three phases
Frequency Hz 200 150 150
Voltage (V) 40/100/200 42/100/200 42/100/200
Power (KW) 0.75 1.8 2.5
Rod head diameter Ø(mm) 80 100 130
Amplitude (mm) 2.5 3.0 3.4
Vibration frequency (r/min) 11200 8500 8500
Excitation force (Kn) 6.0 13 22
Net weight (Kg) 14 22.5 51.5
Packaging size (mm) 1200×100×100 1200×120×120 1200×150×150
