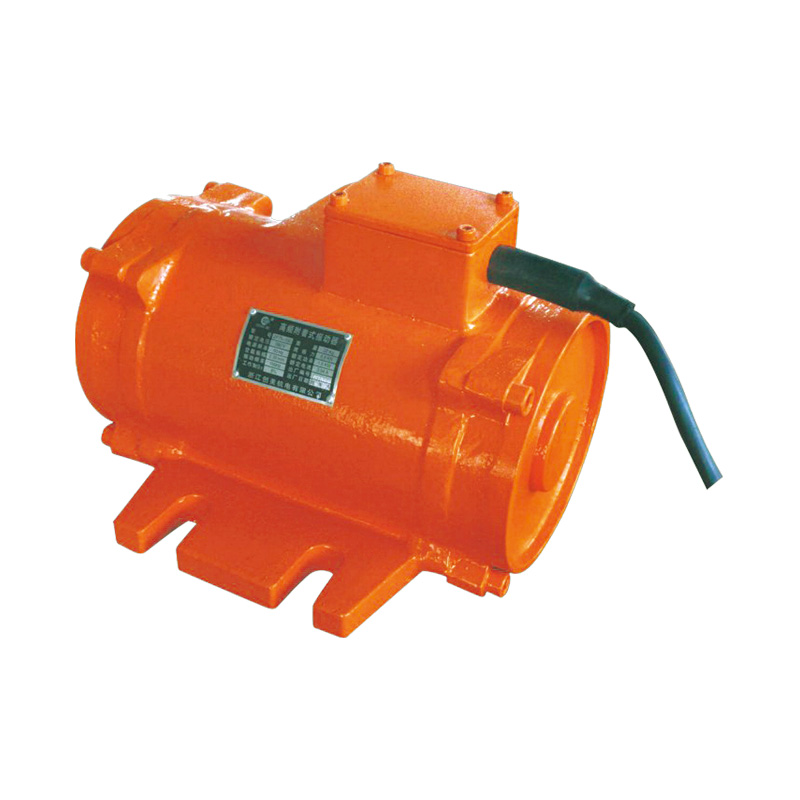

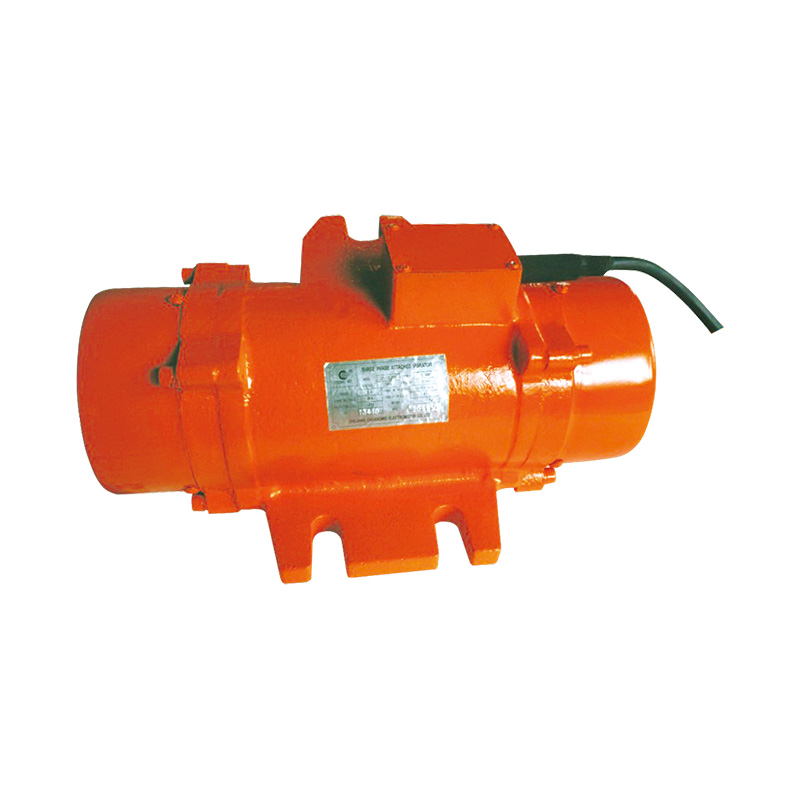

Easy Release High Frequency Attached Concrete Vibrator

In the dynamic construction industry, achieving high-quality concrete compaction while maintaining efficiency is crucial. The Easy Release High Frequency Attached Concrete Vibrator offers a solution that not only meets these demands but also enhances overall construction processes through its innovative design and advanced features.


The Easy Release High Frequency Attached Concrete Vibrator is engineered to deliver outstanding concrete compaction. Its high-frequency vibration technology ensures that even the challenging concrete mixes are compacted uniformly and efficiently. This results in stronger, more durable structures with fewer air pockets and voids, which are critical for long-term structural integrity. The high frequency also allows for faster compaction times, speeding up the construction process and reducing project timelines.

One of a features of this vibrator is its easy release mechanism. Traditional concrete vibrators often require significant effort and time to detach from the formwork, thus delays and potential damage to the concrete surface. The Easy Release High Frequency Attached Concrete Vibrator addresses this issue with a design that allows for quick and hassle-free detachment. This not only saves time but also less the risk of surface defects, ensuring a smooth and professional finish.

The Easy Release High Frequency Attached Concrete Vibrator is a change in the construction industry. Its combination of high-frequency vibration for outstanding compaction, easy release mechanism, enhanced durability, user-friendly design, versatility, and energy efficiency makes it an indispensable tool for any construction project. By choosing this vibrator, contractors can ensure high-quality results, increased efficiency, and a smoother construction process, ultimately thus more successful and sustainable projects.

Product Parameters
model ZF-12/150 ZF-12/200 ZF-12/50A ZF-12/50A
power supply Three phases Three phases Three phases Three phases
Frequency Hz 150 200 50/60 50/60
Voltage (V) 100/200 100/200 220/380 220/380
Power (KW) 1.5 1.5 1.5 1.5
Vibration frequency (r/min) 8800 11500 60~200 60~200
Excitation force (Kn) 12 12 6~12 6~12
Net weight (Kg) 22.5 23.5 20.5 20.5
Packaging size (mm) 410×260×200 410×260×200 300×260×200 300×260×200
